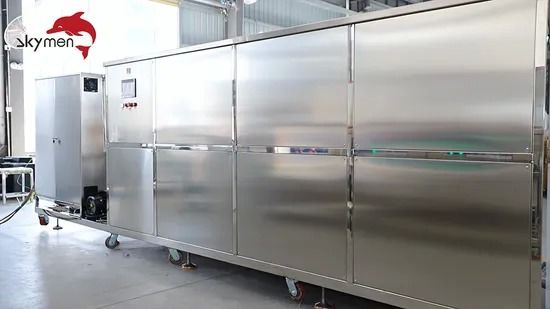

Large Industrial Ultrasonic Cleaning Machine
Professional-grade ultrasonic cleaning solution for mechanical and metal parts with capacities ranging from 1500L to 20000L. Features air cooler washing system for efficient cleaning performance.
Product Specifications
| Model |
JP-1288ST |
| Function |
Ultrasonic cleaning |
| Ultrasonic Frequency |
28/40kHz (customizable) |
| Tank Material |
SUS 304 (SUS 316 customizable) |
| Thickness of tank |
3mm |
| Inner tank dimension |
2000×1200×800mm |
| Tank Capacity |
1500L |
| Transducer |
216pcs (Korean technology) |
| Ultrasonic Power |
10800W |
| Heating Power |
36000W |
| Temperature Range |
Room temperature ~ 95°C adjustable |
| Basket Load Capacity |
500KG |
| Power Supply |
380V 3 phase; 220V 3 phase; 415V; 440V; 600V |
| Warranty |
1 year warranty for spare parts, lifetime technical support |
| Certifications |
CE, RoHS, FCC, REACH |
| Lead Time |
20-30 working days after deposit |
Optional Features
- Filtration cycle system
- Lifting system for basket
- Dunking system
- Bubbling system (requires air compressor)
- Electrolysis for complex molds
- Cooling system for inflammable materials
- Constant temperature control
- Roller barrel for coins and small parts
- Anti-explosion electric box
- Deionized (DI) water system
- Double/Multi frequency options (28/40/20/68/80/132KHz)
Please choose the size that fits your needs or contact us for professional recommendations
Key Features
Stainless steel tank with excellent wear resistance and long service life
Customizable tank capacity to meet specific requirements
Includes stainless steel basket for easy part handling
Works with tap water or industrial solvents for higher cleaning requirements
Industrial-grade control chip and flexible circuit boards for secure, stable operation
Includes drainage system, lid, and multi-directional castors
Skymen-designed PCB board for reliable performance
Effective for cleaning cast iron, steel, stainless steel, brass, bronze and other metals
Ultrasonic Cleaning Advantages
Ultrasonic cleaning effectively removes dirt, oils, lubricants, carbon, and other contaminants that accumulate on industrial parts. The technology reaches into grooves, internal passageways, hidden corners, seals, and other hard-to-access areas, eliminating hours of manual disassembly and reassembly.
The cavitation process creates millions of tiny bubbles that implode, releasing energy that gently but thoroughly cleans all surfaces in contact with the cleaning fluid. This method is non-damaging to parts while significantly reducing labor costs and cleaning time.
Applications
Ideal for use in:
- Electronic manufacturing
- Hardware and machinery production
- Automotive and diesel workshops
- Medical instrument cleaning
- Optical and glass manufacturing
- Aviation and shipbuilding
- Mining equipment maintenance
- Scientific laboratories and universities
- Dental clinics and eyeglass shops
Frequently Asked Questions
What frequency is better for my parts?
28kHz provides stronger cleaning action, ideal for automotive/marine parts (oils, grease removal). 40kHz is better for delicate items like PCBs and electronics. Higher precision components may require higher frequencies.
Can ultrasonic cleaning damage parts?
The cleaning process is completely safe and will not damage properly treated parts. The cavitation action is powerful yet gentle on materials.
What cleaning solution should I use?
We offer various cleaning formulas designed for specific applications. Proper selection is crucial for optimal cleaning and to prevent unwanted reactions with workpieces.
Is rinsing required after cleaning cycles?
Rinsing is recommended to remove any chemical residue. This can be done in the ultrasonic cleaner, a clean water bath, or with tap/distilled water.
About Skymen
Skymen Cleaning Equipment Shenzhen Co., Ltd. has specialized in ultrasonic cleaning technology for over 14 years. We offer high-quality products with comprehensive after-sales support, including both standard and custom-designed cleaning solutions.
