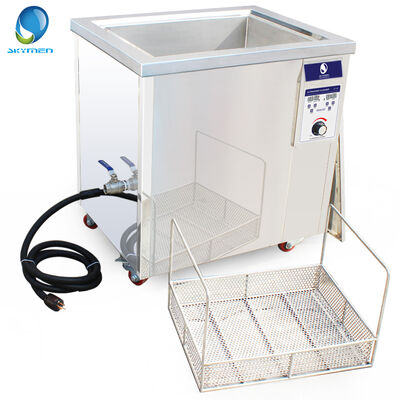

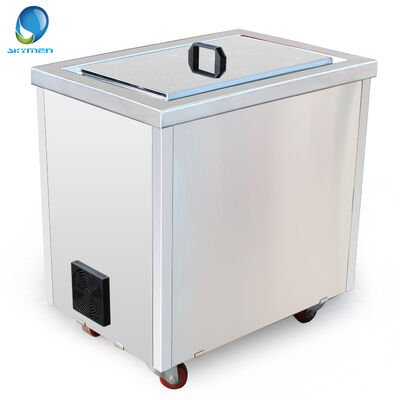

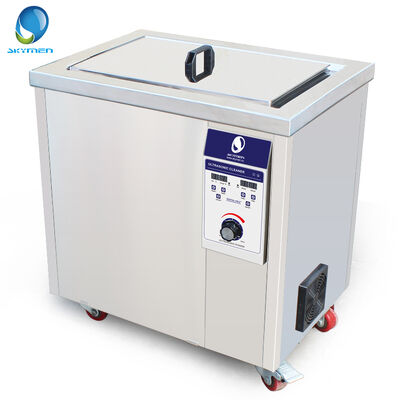

Plastic Mold Ultrasonic Bath for Fast Removing Polypropylene Dust/Oil/Dirt
This industrial ultrasonic cleaning system efficiently removes polypropylene dust, oil, and dirt from plastic molds, delivering superior cleaning performance while saving labor and time.
How Ultrasonic Cleaning Works
Ultrasonic energy generates controlled, high-magnitude pressure fluctuations in liquids that produce consistent, high-level cleanliness in minimal time. Unlike conventional methods, ultrasonic cleaning penetrates minute crevices that other techniques cannot reach.
Plastic Mold Cleaning Procedure
- Fill the tank with appropriate cleaning chemistry and activate heating
- Ensure the plastic mold is fully submerged without air pockets
- Activate ultrasonic energy by turning the system on
- Remove cleaned mold when cycle completes and ensure complete drainage
- Thoroughly rinse all surfaces with clean water
- Dry using evaporation, air-drying, or forced hot air methods
Plastic Mold Cleaning Process
Recommended precision cleaning process using Skymen Model JP-720ST ultrasonic cleaning unit:
| Process Stage |
Ultrasonic Frequency |
Handling |
Temperature (°C) |
Time (minutes) |
| Wash |
40KHz |
Basket |
60 |
5 |
| Rinse |
N/A |
Basket |
Warm |
N/A |
| Dry |
N/A |
Basket |
Ambient |
Until dry |
Technical Specifications
Model: JP-720ST (digital, power adjustable)
Tank Size: 1000×600×600mm
Wood Case Packing: 1300×900×1100mm
Ultrasonic Power: 1440W~3600W
Heating Power: 12KW
Timer: 1~99min adjustable
Heater: 20~80°C adjustable
Frequency: 40,000Hz
Tank Capacity: 360L With Roller
Gross Weight: 280kg
Power Adjustable: 40%-100%
Packing and Delivery
Custom Solutions Available
If the standard tank size doesn't meet your requirements, we offer larger ultrasonic cleaners and can design custom ultrasonic cleaning machines with specialized functions.
Skymen Company Advantages
With over 10 years of industry experience, we supply ultrasonic cleaning machines worldwide and welcome distributors for mutually beneficial partnerships.
Certifications and Approvals
Our products meet international standards including ISO, CE, RoHS, FCC, and National Medical Instrument Approval.
